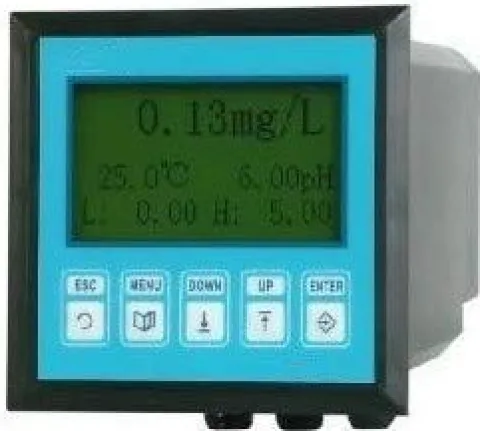

GOWE Online Residual Chlorine Meter 0.00-20.00 mg/L

Description

Brand: GOWE

Features:

• Online residual chlorine instrument / meter/ Technical parameters:/ 1, the measuring range: residual chlorine: 0.00 ~ 20.00 mg/L, HOCL: 0 ~ 10.00 mg/L, PH: 0.00 ~ 14.00 PH;/ 2, the resolution: 0.01 mg/L;0.01 pH/ A, precision: plus or minus 5% + / – 0.03 mg/L, take larger value/ B, pH standard solution: 10.01/4.00/7.00;9.18/4.01/6.86/ C, temperature compensation: 0 ~ 99.9C (pH)/
• D, pH adjustment scope: zero pH 1.45 mm;Slope plus or minus 30%/ E, the movement control: two groups of ON/OFF relay/ F, relay hysteresis: set arbitrary/ 3, the output signal isolation: 4 ~ 20 ma output isolation protection , working conditions: temperature: 0 ~ 99.9C/ 4, the sample flow rate: 80 ~ 160 LPH , signal input impedance: > 1 x 1013 w/ 5, the current output load: allows the maximum load of 500 w/
• 6, to ground voltage insulation degree: the minimum load is 500 VDC, working voltage: 230 vac plus or minus 10%, 50/60 hz, protection grade: instrument protective class IP65/ 7, size: 96 * 96 * 125 mm, the dashboard installation hole size 92 x 92 mm, weight: 0.9 kg/

Details:

The GOWE Online Residual Chlorine Instrument/Meter offers precision and reliability for monitoring water quality, with a comprehensive measuring range for residual chlorine (0.00~20.00 mg/L), HOCL, and pH levels. Designed for accuracy, it features a resolution of 0.01 mg/L and precision within 5%, ensuring dependable results every time. Its advanced capabilities include temperature compensation from 0 to 99.9°C and adjustable pH settings, making it versatile for various environments. With dual ON/OFF relay controls and customizable relay hysteresis, this instrument provides exceptional control and flexibility. It boasts a robust IP65 protection grade, guaranteeing durability in demanding conditions, while the compact design (96x96x125 mm) ensures convenient installation. Ideal for professional applications, the GOWE meter is engineered for seamless integration with a maximum load capacity of 500 watts and a working voltage of 230 VAC.

UPC: 827674671639
